ArgoCD Image Updater: Automating Container Image Lifecycle with EKS + ECR

Overview

#

Modern DevOps practices thrive on GitOps automation, where Git is the single source of truth for both application code and deployment configurations. While Argo CD empowers teams to declaratively manage Kubernetes manifests, keeping container images up-to-date often remains a manual or CI-driven task.

Argo CD Image Updater — an add-on service that automatically tracks new container image tags in your registries (like AWS ECR) and updates your Git repository or Argo CD Application manifests accordingly.

Think of it as the bridge between your CI (build) and GitOps (deploy) worlds — every time a new image version is built and pushed, Image Updater ensures your environment stays in sync.

Some of the key benefits of using image updater:

• Continuous Deployment: Automatically promotes new images.
• GitOps-Friendly: Writes updates back to Git.
• Registry-Agnostic: Works with ECR, DockerHub, Quay.io, GCR, etc.
• Declarative Control: Fine-tune which images, tags, or strategies to track.

How does ArgoCD Image Updater work

#

At its core, the Image Updater periodically scans Argo CD Applications for special annotations. These annotations instruct it which images to watch, how to update them, and where to apply updates.

Core Workflow

#

1. Discover: It lists Argo CD Applications via Argo CD API.
2. Inspect: Reads the annotations (e.g., argocd-image-updater.argoproj.io/image-list).
3. Check Registry: Connects to your registry (AWS ECR in our case) and compares current vs. latest tags.
4. Decide Update: Based on the strategy (e.g., newest-build, semver, latest).
5. Write Back:
   • Mode 1: Writes image tag directly into the Argo CD Application spec.
   • Mode 2: Commits changes to Git repo (GitOps-compliant).
6. Sync: Argo CD reconciles the updated spec and redeploys.

Note: Use write-back-method: git for production; it preserves auditability and history in Git.

Setting Up Argo CD Image Updater on EKS with ECR

#

Prerequistes

#

• kubernetes cluster (EKS) - v1.29+
• ECR Registry with push access from the CI system
• IAM Role / IRSA for Image Updater with ecr readonly permissions
• Argocd installed
• Github repo hosting your manifest

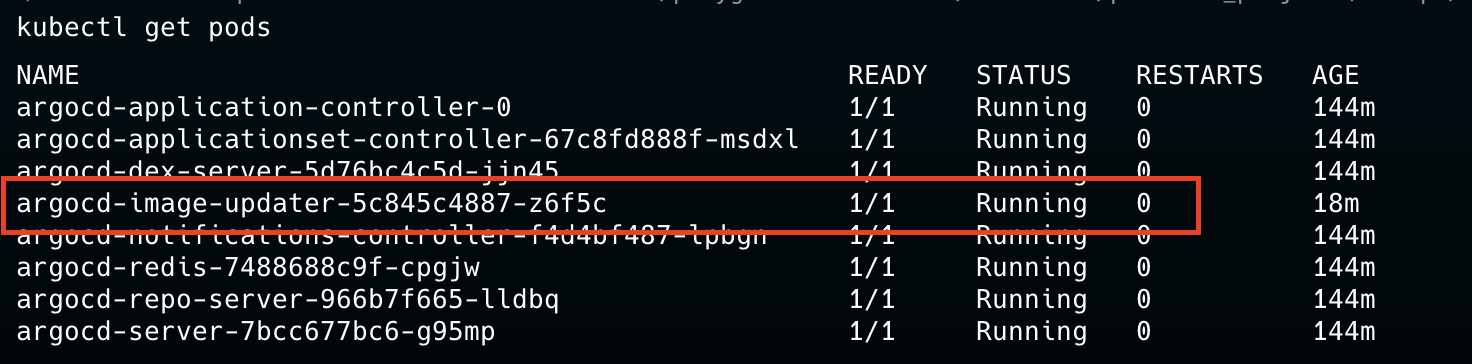

Deploy argocd image updater via Helm

#

Add the below specific configs in your image-updater values file

serviceAccount:
  create: true
  annotations:
    eks.amazonaws.com/role-arn: arn:aws:iam::<AWS_ACCOUNT_ID>:role/<IAM_ROLE_NAME>
  name: <IAM_ROLE_NAME>

registries:
    - name: ECR
      api_url: https://<AWS_ACCOUNT_ID>.dkr.ecr.<AWS_REGION>.amazonaws.com
      prefix: <AWS_ACCOUNT_ID>.dkr.ecr.<AWS_REGION>>.amazonaws.com
      ping: yes
      insecure: no
      credentials: ext:/scripts/ecr_login.sh
      credsexpire: 6h

authScripts:
  # -- the scripts will be mounted at `/scripts`
  enabled: true
  scripts:
    ecr_login.sh: |
      #!/bin/sh
      set -eu

      # Redirect AWS CLI writes to a writable path
      export HOME=/tmp
      mkdir -p /tmp/.aws
      export AWS_CONFIG_FILE=/tmp/.aws/config
      export AWS_SHARED_CREDENTIALS_FILE=/tmp/.aws/credentials
      export AWS_EC2_METADATA_DISABLED=true

      REGION="${AWS_REGION:-ap-south-1}"
      PASSWORD="$(aws --no-cli-pager ecr get-login-password --region "$REGION")"
      # single line, no trailing newline:
      printf 'AWS:%s' "$PASSWORD"

helm repo add argo https://argoproj.github.io/argo-helm
helm upgrade --install argocd-image-updater argo/argocd-image-updater \
  -n argocd \
  -f image-updater.yaml

Configuring Image Updater for Argo CD Application

#

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: version-service-dev
  namespace: argocd
  annotations:
    #argocd-image-updater.argoproj.io/image-list: 720736521509.dkr.ecr.ap-south-1.amazonaws.com/codeact:~1.0
    argocd-image-updater.argoproj.io/image-list: codeact=720736521509.dkr.ecr.ap-south-1.amazonaws.com/codeact:~1.0
    argocd-image-updater.argoproj.io/codeact.helm.image-name: image.repository
    argocd-image-updater.argoproj.io/codeact.helm.image-tag: image.tag
    argocd-image-updater.argoproj.io/write-back-method: argocd
    argocd-image-updater.argoproj.io/update-strategy: newest-build
spec:
  project: default
  source:
    repoURL: https://github.com/Vinay-Venkatesh/GitOps.git
    targetRevision: main
    path: fastapi/charts/version-service
    helm:
      valueFiles:
        - values.yaml
  destination:
    server: https://kubernetes.default.svc
    namespace: version-service-dev
  syncPolicy:
    automated:
      prune: true
      selfHeal: true
    syncOptions:
      - CreateNamespace=true

• Image Updater monitors codeact repo in ECR.
• Whenever a new 1.x.x tag is published, it updates image.tag or directly in spec.
• Directly patches the Application manifest inside Argo CD. (write-back-method: argocd)

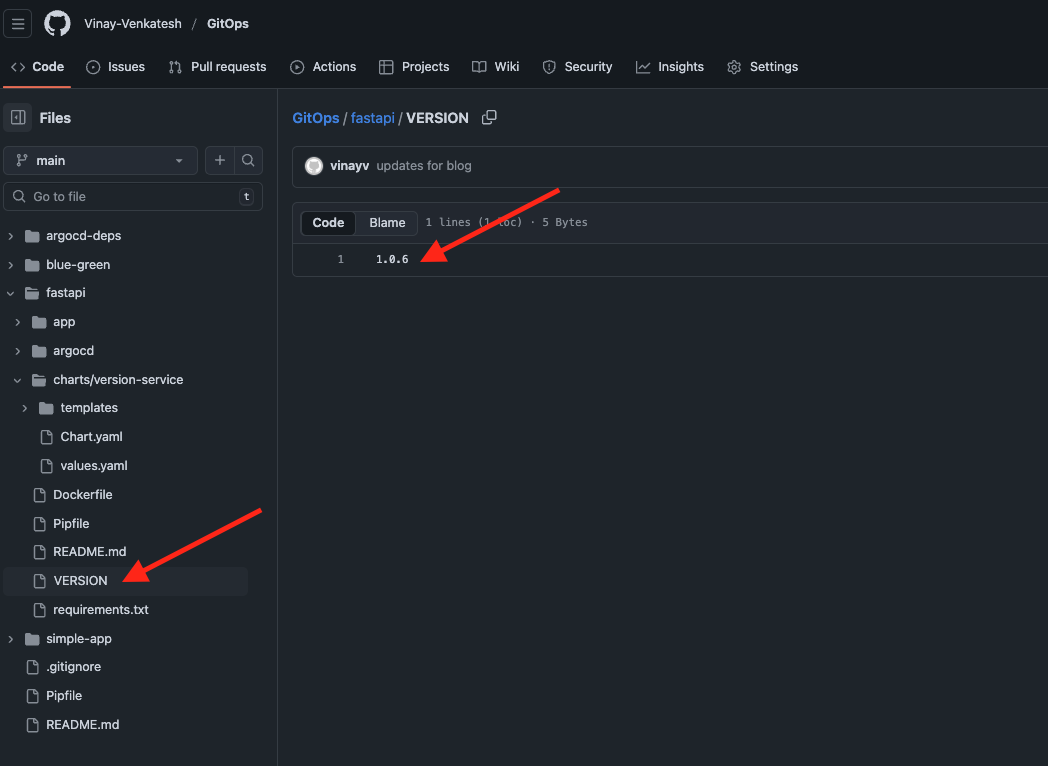

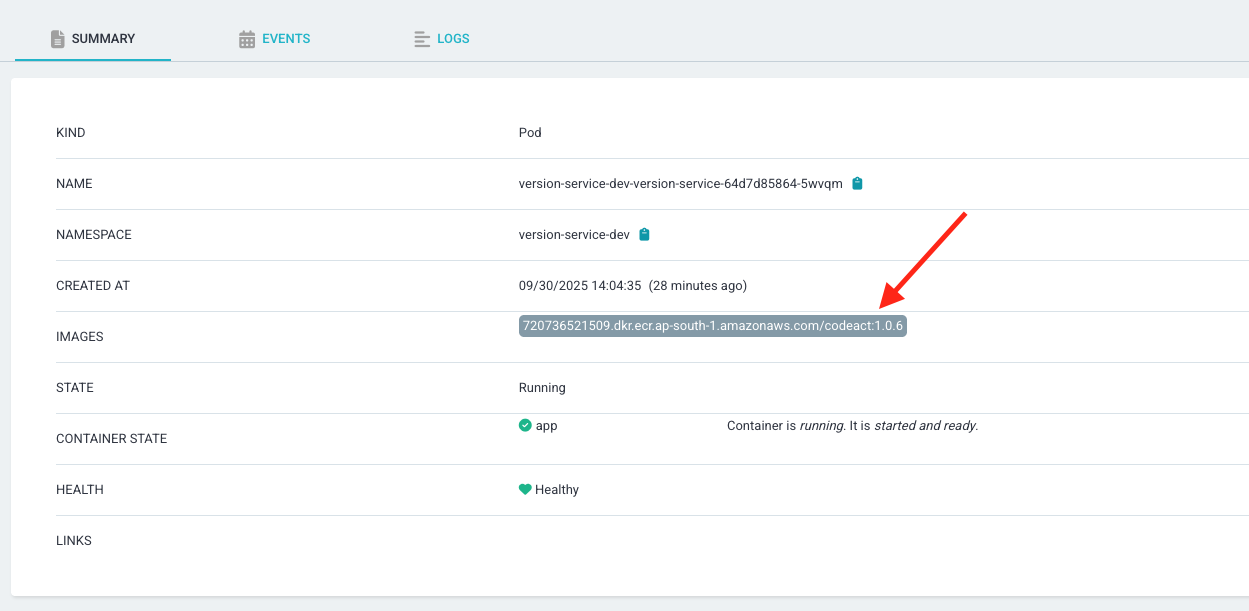

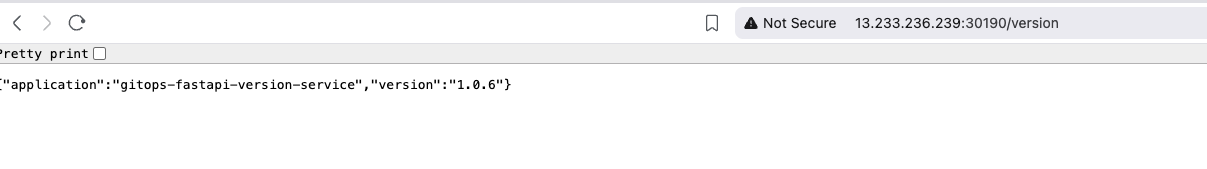

Current State:

Test Argo CD Image Updater

#

• First, create an image of the fastapi application and increment the tag.
• Push the new image to ECR to check if the image updater is rolling out the new image.

docker buildx build \
  --platform linux/amd64,linux/arm64 \
  -t 720736521509.dkr.ecr.ap-south-1.amazonaws.com/codeact:1.0.7 \
  --push .

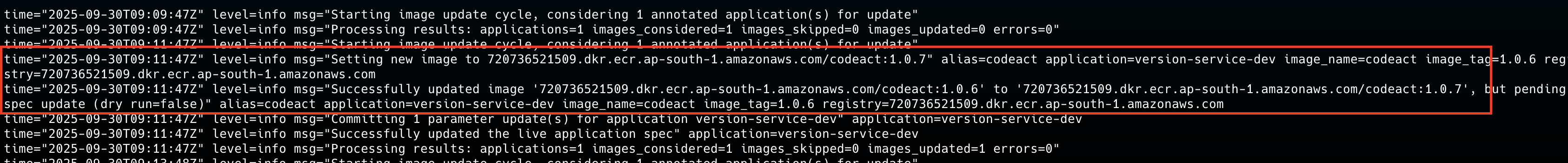

Image updater was alerted on the image push

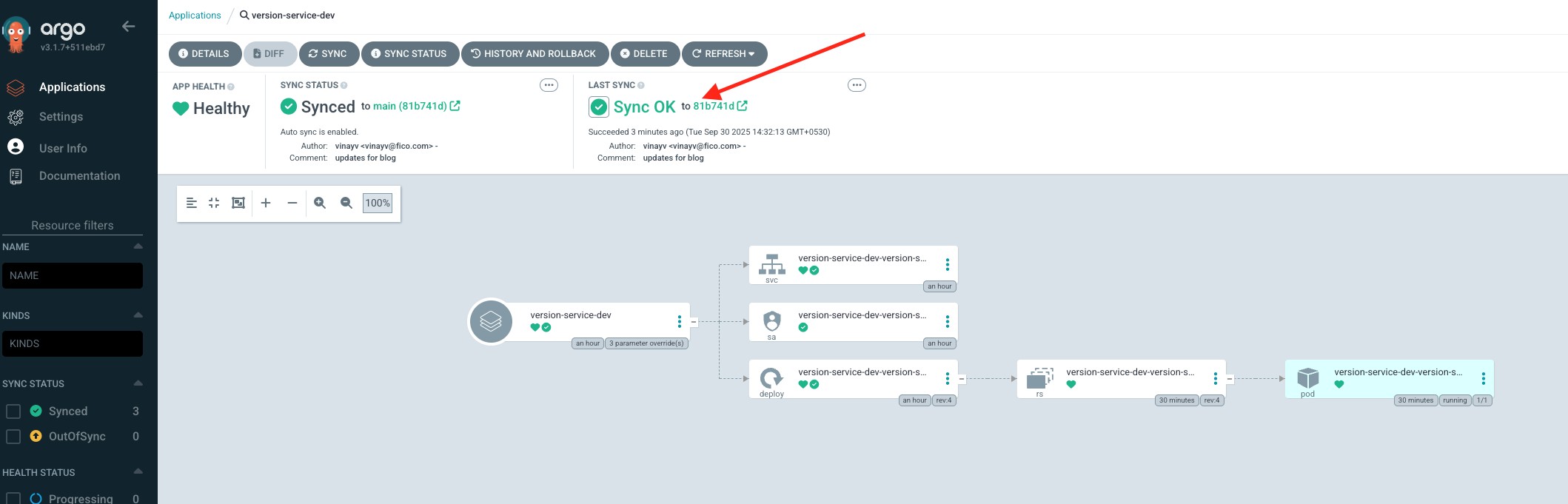

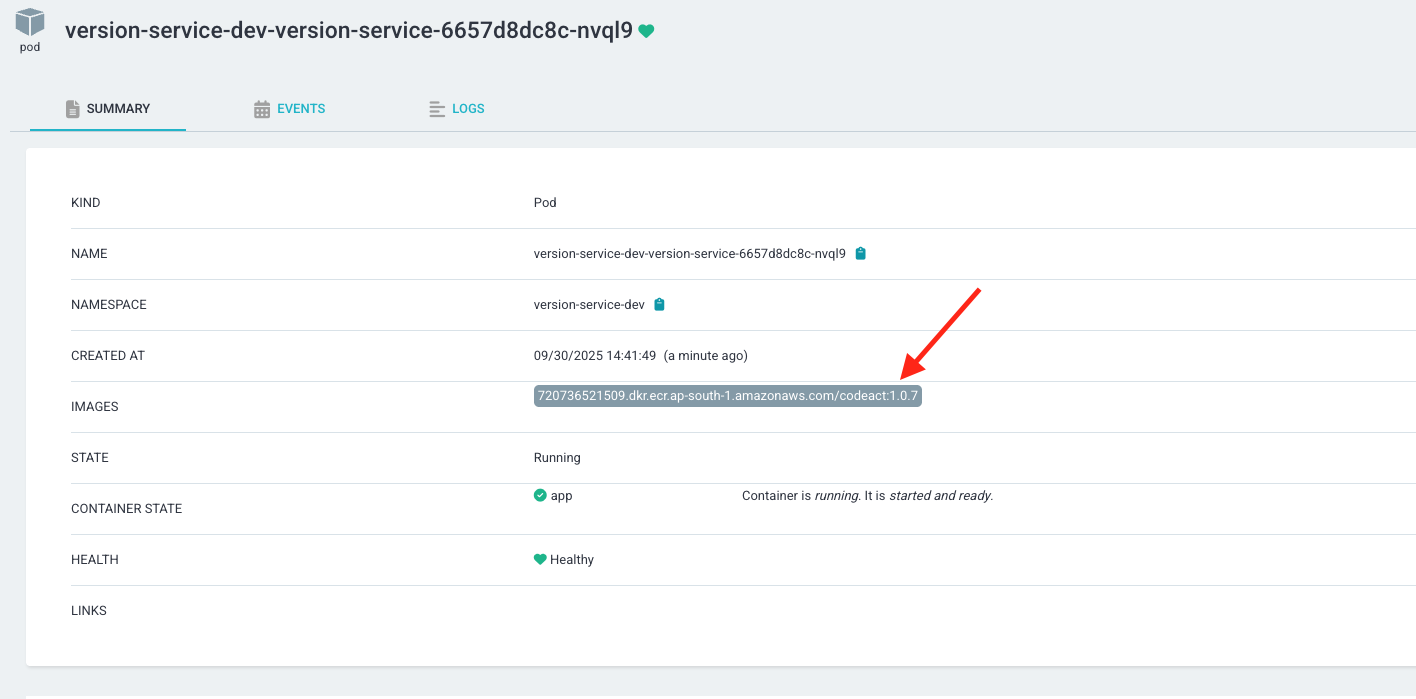

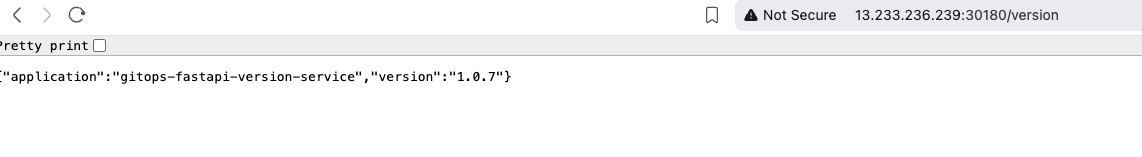

ArgoCD In place update

Configuring Image Updater for Argo CD ApplicationSet

#

apiVersion: argoproj.io/v1alpha1
kind: ApplicationSet
metadata:
  name: version-service
  namespace: argocd
spec:
  generators:
    - list:
        elements:
          - name: dev
            namespace: version-service-dev
            valuesFile: values.yaml
  template:
    metadata:
      name: version-service-{{name}}
      annotations:
        argocd-image-updater.argoproj.io/image-list: codeact=720736521509.dkr.ecr.ap-south-1.amazonaws.com/codeact:~1.0
        argocd-image-updater.argoproj.io/codeact.helm.image-name: image.repository
        argocd-image-updater.argoproj.io/codeact.helm.image-tag: image.tag
        argocd-image-updater.argoproj.io/write-back-method: git
        argocd-image-updater.argoproj.io/write-back-target: helmvalues
        argocd-image-updater.argoproj.io/update-strategy: newest-build
    spec:
      project: default
      source:
        repoURL: https://github.com/Vinay-Venkatesh/GitOps.git
        targetRevision: main
        path: fastapi/charts/version-service
        helm:
          valueFiles:
            - '{{valuesFile}}'
          parameters:
            - name: service.type
              value: NodePort
            - name: service.port
              value: "8000"
            - name: service.nodePort
              value: "30190"
      destination:
        server: https://kubernetes.default.svc
        namespace: '{{namespace}}'
      syncPolicy:
        automated:
          prune: true
          selfHeal: true
        syncOptions:
          - CreateNamespace=true

• Image Updater monitors codeact repo in ECR.
• Whenever a new 1.x.x tag is published, it updates image.tag and pushes the changes to git.
• Performs a git commit. (write-back-method: git)

Test Argo CD Image Updater

#

• First, create an image of the fastapi application and increment the tag.
• Push the new image to ECR to check if the image updater is rolling out the new image.

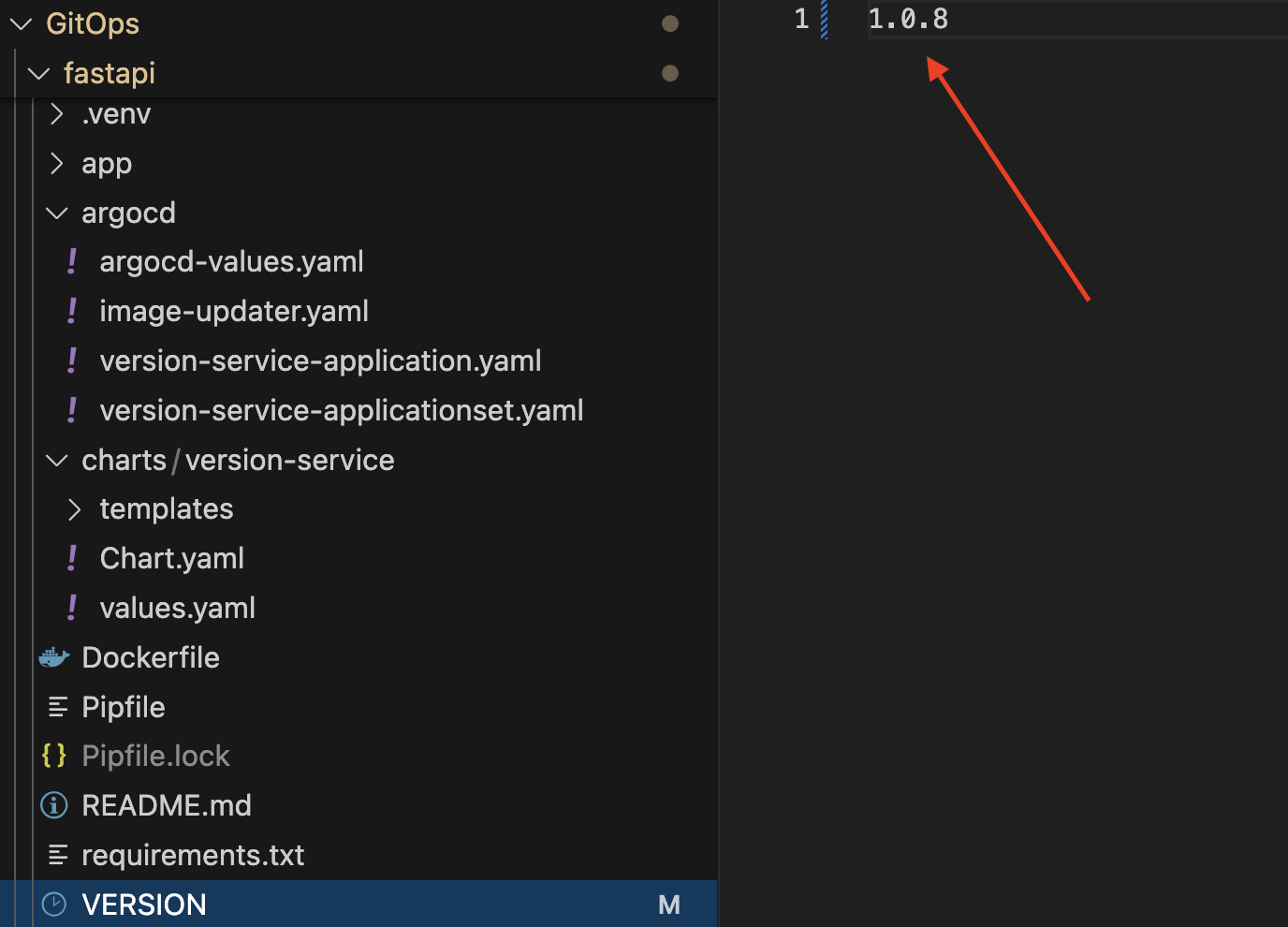

Update the version to create a new image and push it to ECR

docker buildx build \
  --platform linux/amd64,linux/arm64 \
  -t 720736521509.dkr.ecr.ap-south-1.amazonaws.com/codeact:1.0.8 \
  --push .

Image updater was alerted on the image push

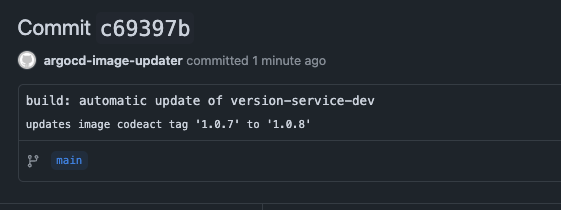

Git commit

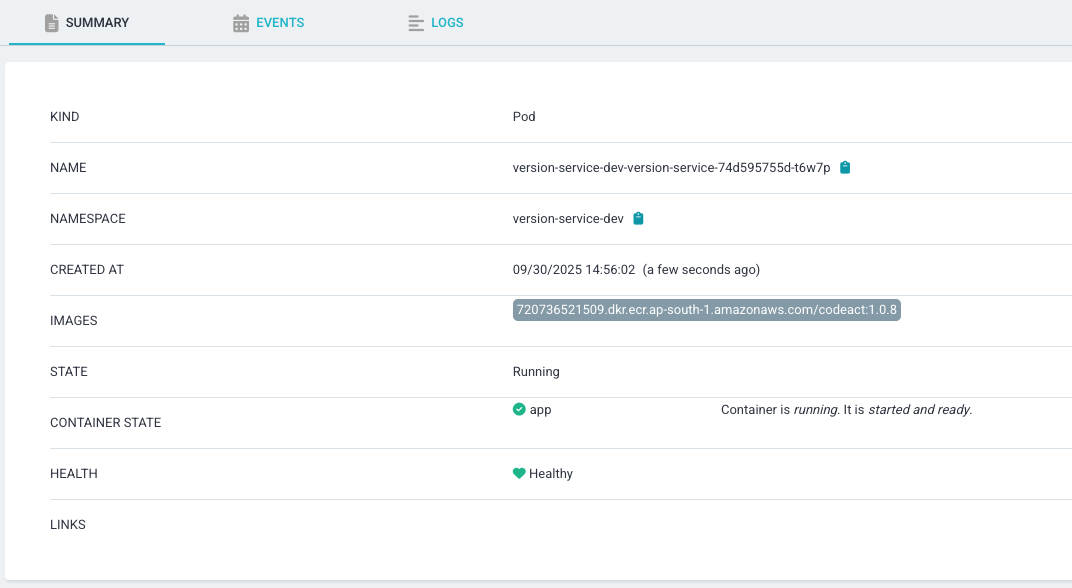

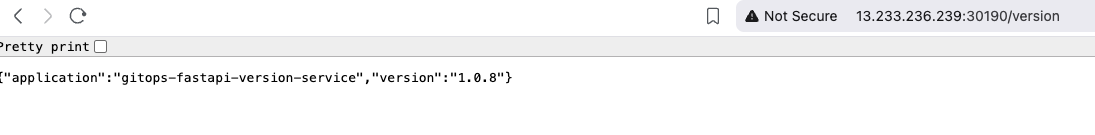

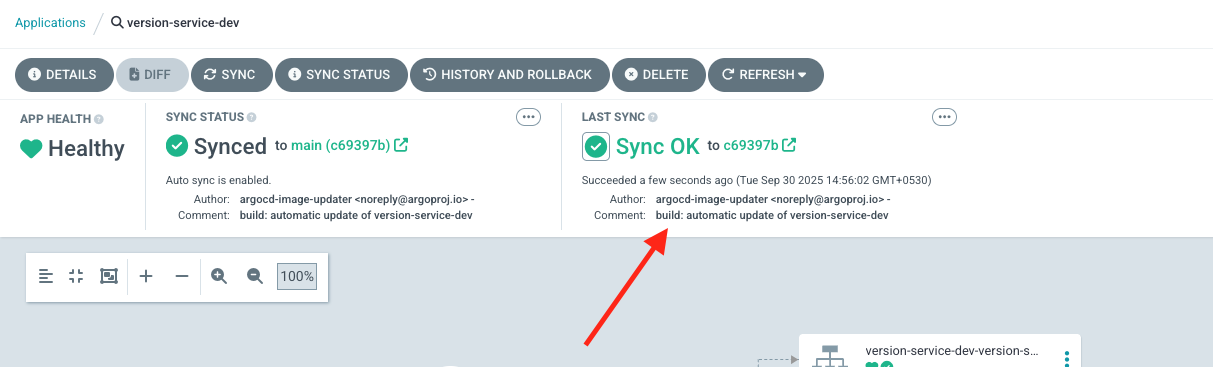

Argocd Reconciled

Summary

#

By integrating Argo CD Image Updater into your EKS + ECR GitOps workflow, you achieve zero-touch image promotion — no more manual version bumps or CI scripts.

It empowers developers to focus on code, while the platform ensures continuous delivery of the latest builds in a secure, declarative, and auditable manner.

References

#

• Source code - https://github.com/Vinay-Venkatesh/GitOps/tree/main/fastapi
• ArgoCD Image updater - https://argocd-image-updater.readthedocs.io/en/stable/
